Fabriform® Unimat Revetments
Fabriform Unimat fabric formed concrete revetments are characterized by a slightly dimpled surface. Permeability approximates that of high quality paving. Criteria for selection of Unimat revetment is the same as that employed in determining the thickness of conventional paving. Unimat revetments provide protection for ditches, creeks, reservoirs, canals, liner protection, holding ponds, bridge abutments and any where else hard armor protection is required.
When required, weep tubes are installed to allow the relief of hydrostatic pressure uplift.
KEY BENEFITS:
• Minimum hydraulic friction and maximum impermeability
• Ease of installation above and below water
• Economical, adaptable and durable revetment system
4" Unimat Revetment
Over 600,000 square feet of Unimat protects a reservoir in Texas |
|

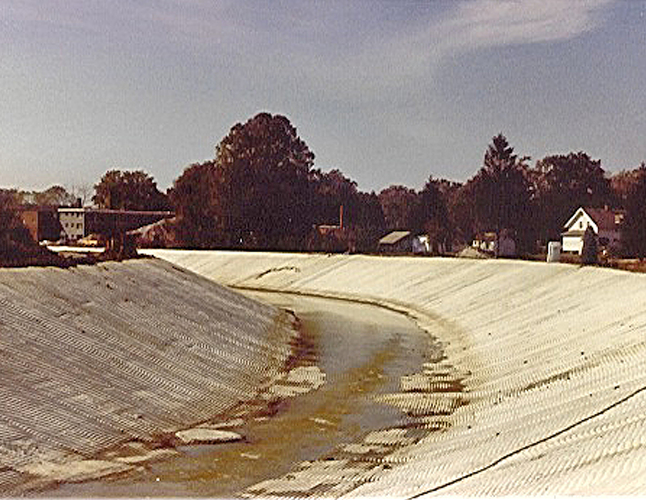

Euclid Creek Flood Control
8" Unimat lining install in 1980's protecting a large channel in Ohio |
|

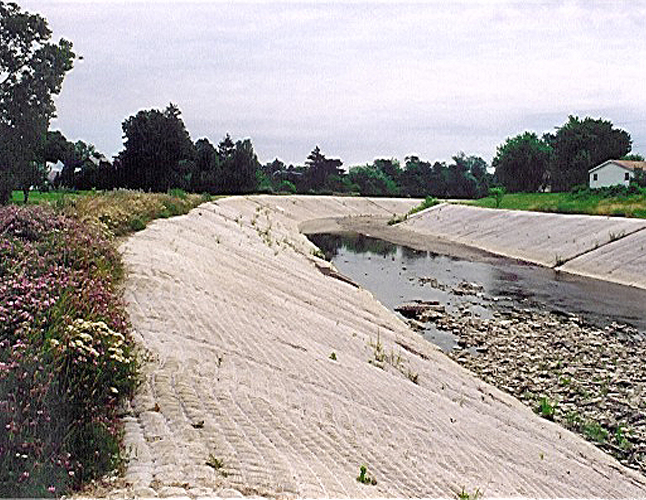

Euclid Creek 15 years later
Still protecting the flood control channel |
|

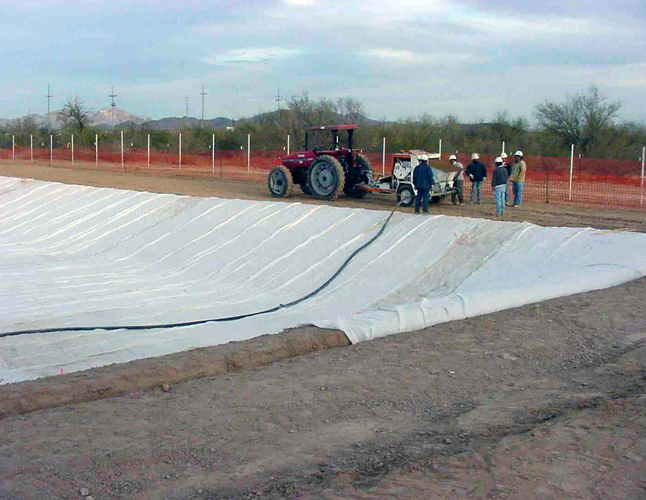

Perimeter Channel Lining
Large perimeter channel in Arizona protected by Fabriform Unimat. |

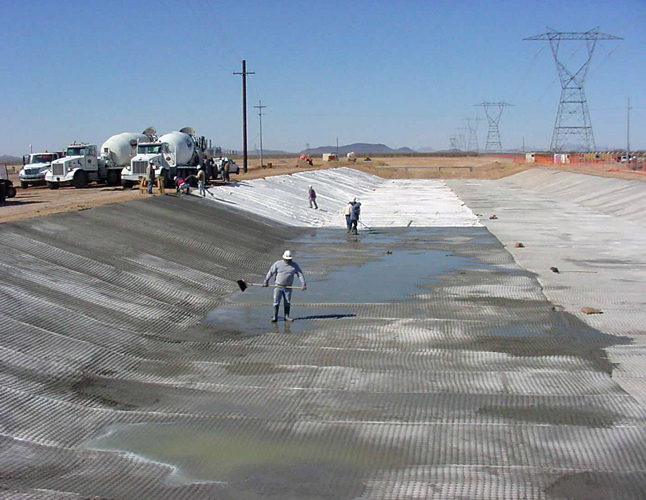

Perimeter Channel Lining
Continued installation of Fabriform Unimat. |
Perimeter Channel Lining
Almost completed, this project demonstrates the suitability of Fabriform for large-scale projects. |
Unimat Installation
incorporating weep tubes at a Florida phosphate mine. |

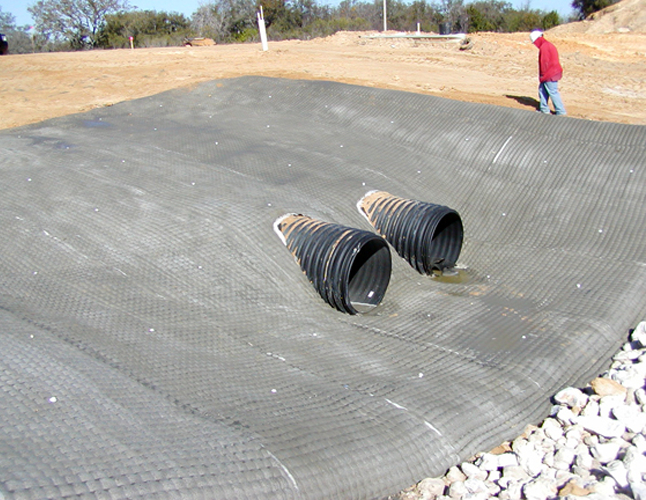

Adaptable
Unimat is easily cut around water-control pipes. |
Weep Tube Assembly
Close-up of a weep tube installed in 4" Unimat. |
|
|
